200mm (8’’) Arrow Traffic Light

Q: What are the 3 traffic lights?

Red, amber, and green non-flashing lights should be positioned horizontally (on the side opposing the traffic direction) or vertically on a three-color signal head (with red on top).

Q: Why is yellow used in traffic lights?

Yellow Light - The yellow light on traffic signals is a warning light, and it serves two objectives. The first is to advise that you should slow down and prepare to stop at the red light.

Q: Why do we stop at red lights?

About half of the fatalities resulting from red-light runners are pedestrians , bikers, and passengers of other cars. More than 697 persons were killed and an estimated 127,000 were wounded in red-light running-related accidents in 2013.

Q: What do traffic light signals mean?

Red light indicates that cars must halt. A green light indicates that the motorist may begin or continue driving . The presence of a yellow light alerts cars to stop when it is safe to do so since the signal is soon to turn red.

Q: What does traffic light with green arrow and red light mean?

Driver faces a traffic light with a green arrow and a red light, should enter the intersection safely in the direction indicated by the arrow without stopping. But when the intersection is full of vehicles, we need to wait for the road is clear before entering.

Q: What does a red light with an arrow mean?

RED ARROW: Until the green signal or green arrow emerges, follow the red arrow. A red arrow cannot be turned against. YELLOW—A yellow signal light alerts you to the impending red signal. If it's safe to do so, you should stop when you see the yellow light.

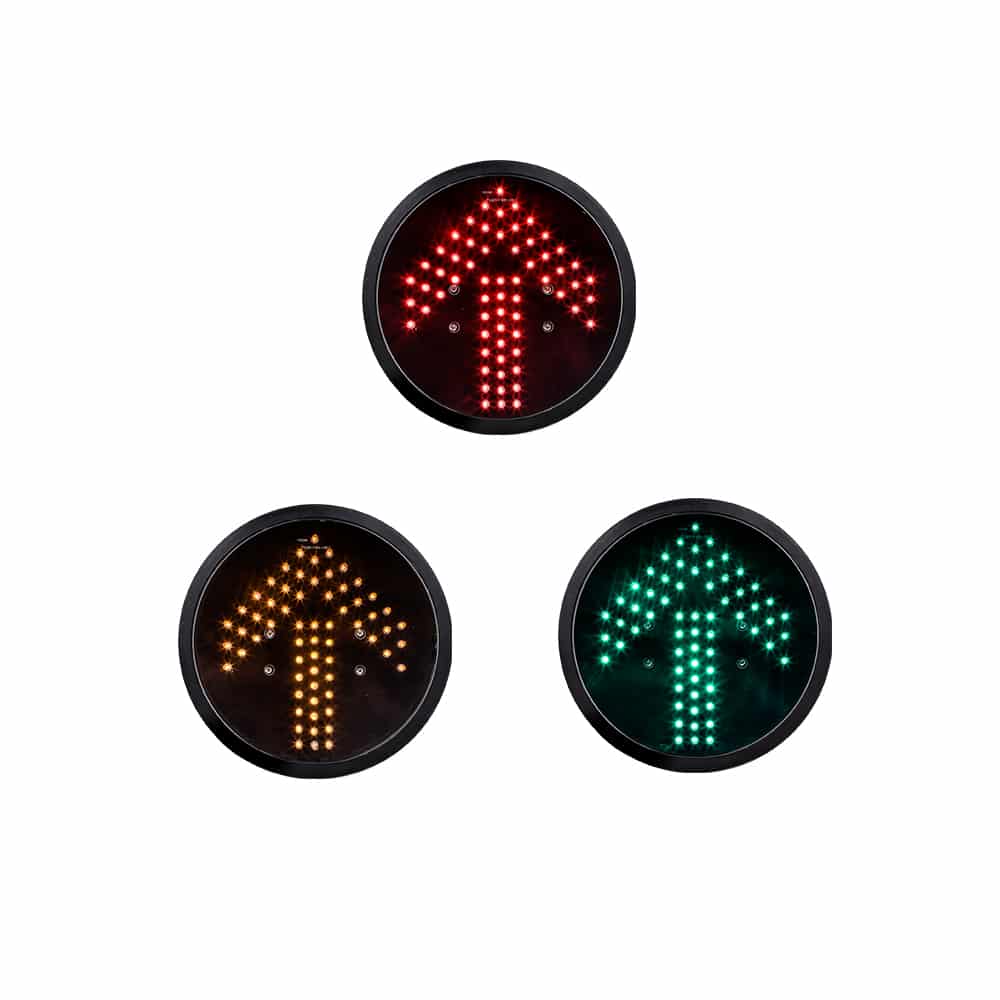

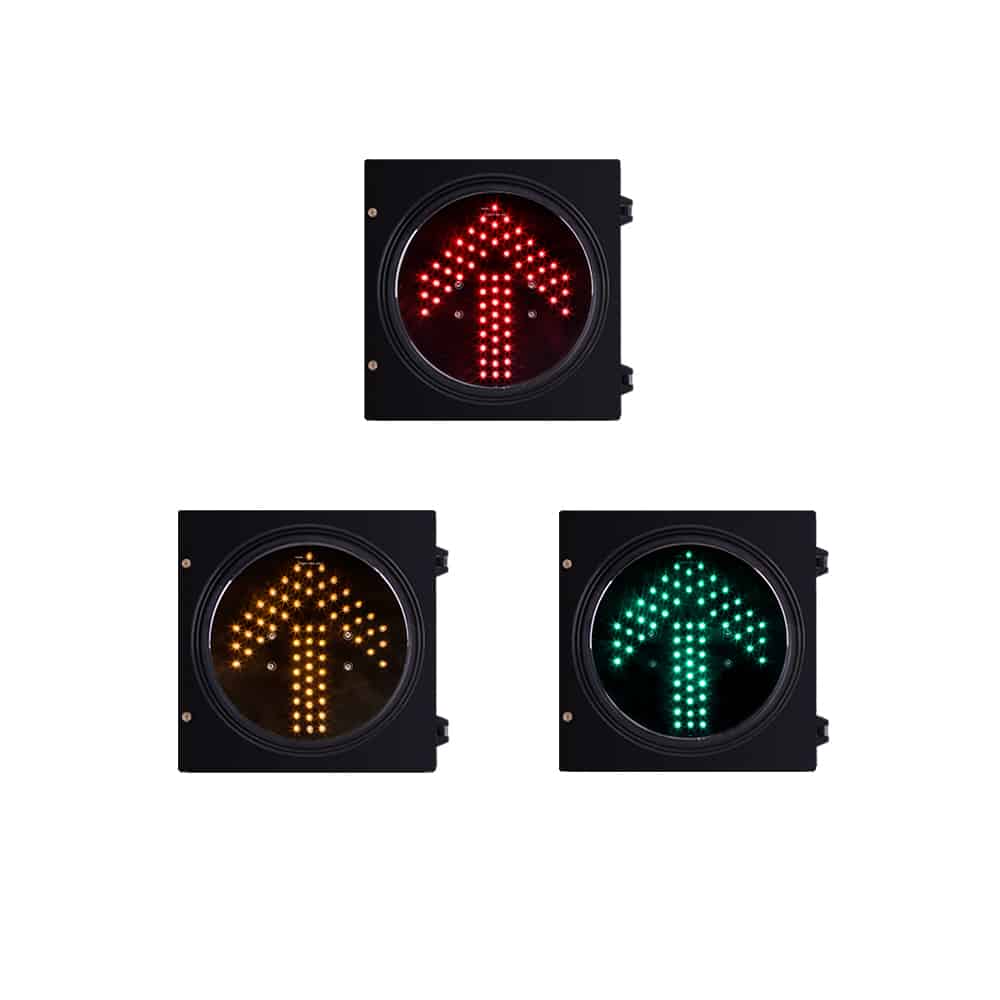

200mm arrow traffic light includes red, green, or yellow one aspect arrow traffic lights, or red/green two aspects arrow signal light, or red, green, or yellow three aspects arrow signal light. The red arrow means Traffic shall not make the movement displayed by the arrow; the Green arrow means traffic can proceed in the direction shown by the arrow; The yellow arrow means movement is being terminated.

Product Features

Working humidity: ≤95%
Utilizing imported LED chips, long lifespan
Using constant current driver
Low power consumption
Multi-ply sealed water-resistant, IP rating:>IP54
Visible distance: >500M
Long visible distance, symmetrical light distribution.
Novel structure and beautiful appearance, using inflaming retarding and UV-proof housing material.

ZGSM products are designed for the global market. Please contact our sales team for certification details.
Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series No	200mm (8’’) Arrow Traffic Light
Products	Arrow Traffic Light
Apply Diameter	Ф200 mm (Ф8 inches)
Wavelength	Red: 625±5nm; Green: 500±5nm; Yellow: 590±5nm
Light Intensity	5000~13000mcd
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.90
Visual Angle	<30°
IP Rating	IP54
Standard(s)	GB14887-2006, EN50293:2000 & EN12368:2006
Visible Range	200m (656ft)
CRI	/
Operating Temperature	-40°C to + 75°C
Warranty	1 Year
Certification	CE, ROHS
Control	Smart control, remote control

Specification_TrafficLight Installation Manual_TrafficLights

Video from Youtube, Practical Engineering

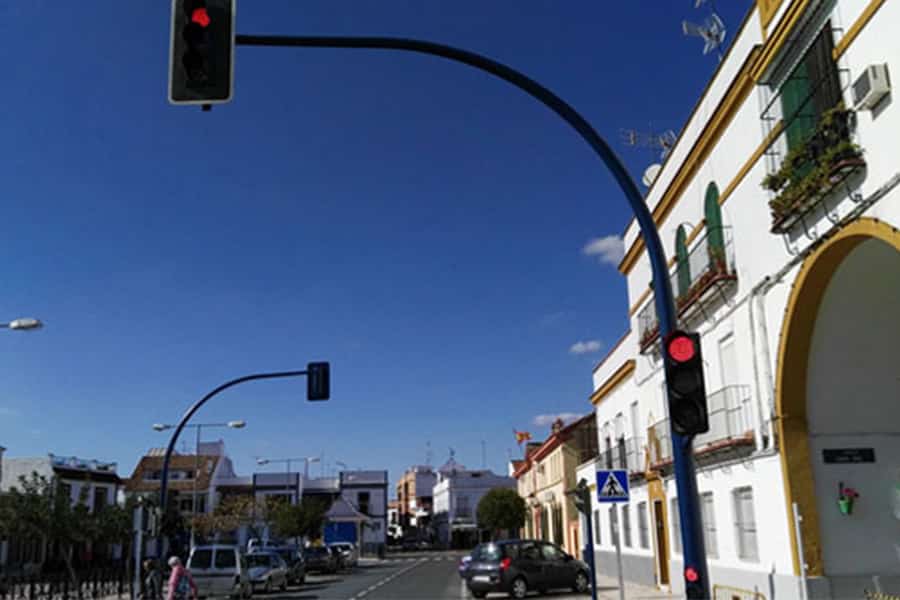

200mm Traffic Lights in Spain

300mm Traffic Signal Light in Peru

Traffic Signs Light for Motorways in Pakistan

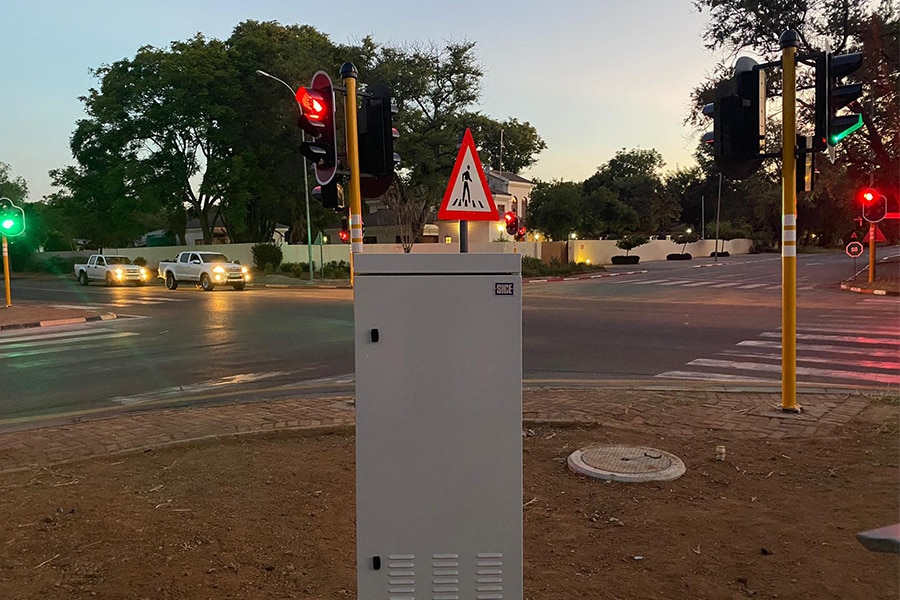

200mm LED Traffic Lights in Botswana

Solar-powered Traffic Light Systems in Portugal

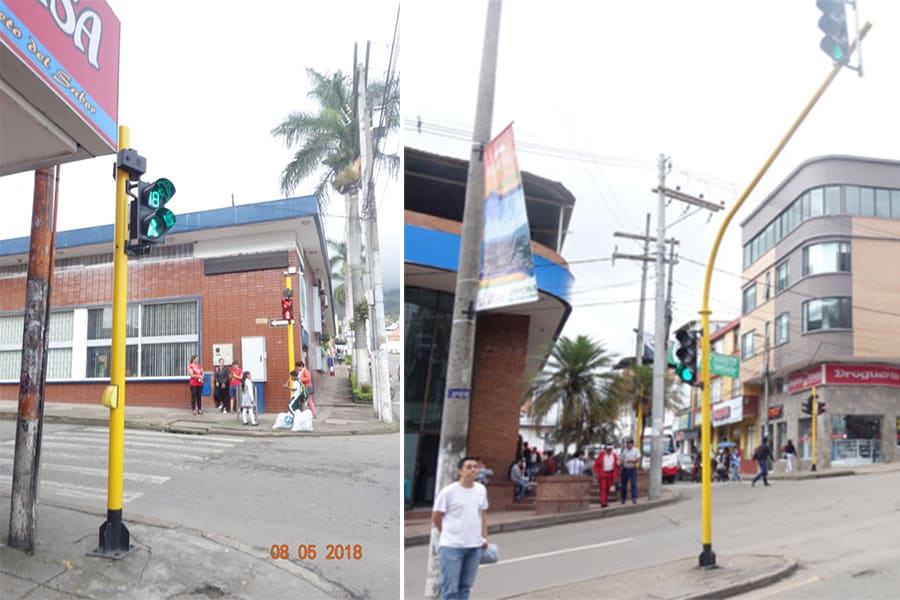

200mm LED Crossing Light in Colombia

Red, amber, and green non-flashing lights should be positioned horizontally (on the side opposing the traffic direction) or vertically on a three-color signal head (with red on top).

Yellow Light – The yellow light on traffic signals is a warning light, and it serves two objectives. The first is to advise that you should slow down and prepare to stop at the red light.

About half of the fatalities resulting from red-light runners are pedestrians, bikers, and passengers of other cars. More than 697 persons were killed and an estimated 127,000 were wounded in red-light running-related accidents in 2013.

Red light indicates that cars must halt. A green light indicates that the motorist may begin or continue driving. The presence of a yellow light alerts cars to stop when it is safe to do so since the signal is soon to turn red.

Driver faces a traffic light with a green arrow and a red light, should enter the intersection safely in the direction indicated by the arrow without stopping. But when the intersection is full of vehicles, we need to wait for the road is clear before entering.

RED ARROW: Until the green signal or green arrow emerges, follow the red arrow. A red arrow cannot be turned against. YELLOW—A yellow signal light alerts you to the impending red signal. If it’s safe to do so, you should stop when you see the yellow light.
