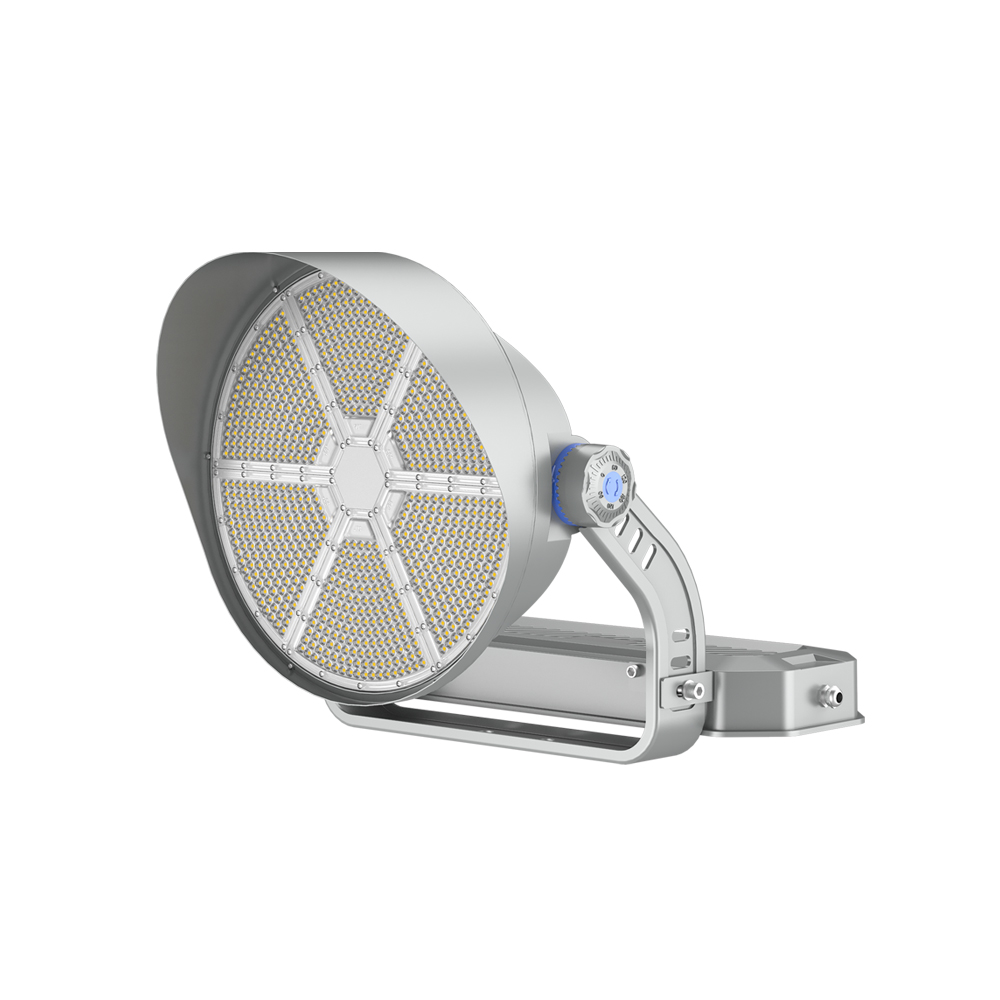

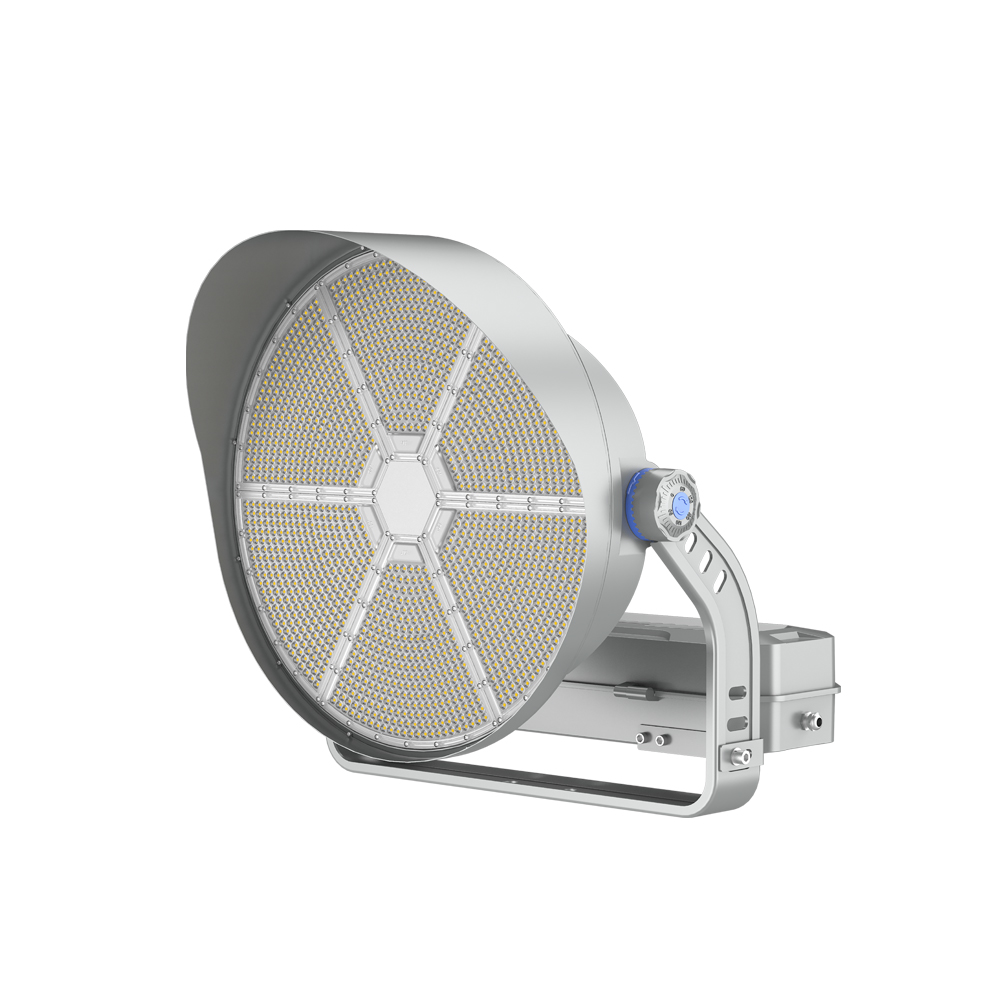

Series FL10 LED Mast Light with High-Power Luminaires

Series FL10 LED mast light is made of ADC12 die-cast aluminum and advanced surface treatment process, which provides excellent thermal management performance and anti-corrosion performance. This series is a professional solution designed for sports lighting and area lighting, suitable for large stadiums, airports, docks and other scenes ( Find right sports lighting fixtures ). Its diverse beam angles (10°, 15°, 25°, 45°, 60° and 90°) meet the needs of different sized sports venues for light distribution. The series FL10 is equipped with toughened glass(optional), which effectively reduces the negative impact of UV rays on the optical system. The tool-less LED driver box design which can be remotely mounted greatly facilitate the commissioning and maintenance of the luminaire. In addition, the visor design effectively reduces light spillage, thereby reducing light pollution. In terms of optical performance, this has a high luminous efficacy of 150lm/w, a high CRI and a high TLCI, which can perfectly satisfy the needs of the stadium for high-quality lighting.

Product Features

  • Power options: 400W, 500W, 600W, 800W, 1000W, 1200W
  • High luminous efficacy: Up to 150lm/W±5%
  • IK08 rating ( What is an IK rating? ), IP66 waterproof ( What are IP ratings? )
  • Long lifespan: 10,0000 hours
  • High CRI and high TLCI for choice ( What is CRI, and how is it calculated? )
  • Multiple Beam Angles: 10°, 15°, 25°, 45°, 60°, and 90° for options
  • Optional: Tempered glass, DALI driver
  • Tool-less LED driver box design which can be remotely mounted
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
LED Mast Light
Model No. ZGSM-FL10-400/500/600 ZGSM-FL10-800/1000/1200
Power 400W/500W/600W 800W/1000W/1200W
CCT 1800K-6500K 1800K-6500K
Lighting Efficacy 150lm/W±5% 150lm/W±5%
Lumen Flux 60000LM/75000LM/90000LM 120000LM/150000LM/180000LM
LED Brand LUMILEDS LUMILEDS
Qty of LED 3030-714PCS 3737-240PCS 3030-1540PCS 3737-504PCS
Beam Angle 3737 For 10°/15° 3030 For 25°/45°/60°/90° 3737 For 10°/15° 3030 For 25°/45°/60°/90°
Driver SOSEN/MOSO SOSEN/MOSO
Input Voltage AC 100-240V /277V | 50 /60Hz AC 100-240V /277V | 50 /60Hz
Power Factor >0.95 >0.95
SPD 10KV (Default) /20KV on request 10KV (Default) /20KV on request
THD <15% <15%
Driver Efficiency >92% >92%
IP Rating IP66 IP66
Lifespan 100,000Hrs 100,000Hrs
Housing Die-Cast Aluminum Die-Cast Aluminum
Cover Material PC lens, Glass (Optional) PC lens, Glass (Optional)
Fixture Size 521*511*393mm 680*660*442mm
Carton Size 710*675*355mm 885*730*440mm
Net Weight 20.05KG 33.30KG
Gross Weight 22.22KG 38.10KG
FL10 Series LED Mast Light optics
DS_FL10_LED Mast Light Manual_FL10_LED Mast Light

High mast lighting is a field luminaire typically used to illuminate large areas from very high mounting heights for storage, transportation, pedestrian use, and safety. High mast fixtures are typically mounted on poles from 40 feet to 150 feet high, with 4 to 16 fixtures per pole. This type of outdoor lighting is often used by municipalities, ports, municipalities, and parking lots of large venues such as stadiums and sports facilities.

High mast lighting is a tall pole with lighting at the top pointing towards the ground, usually but not always used to illuminate highways or recreational areas. It is used in locations where large areas need to be illuminated.

Traffic officials say they use the towering "high mast" lights because they are more efficient - nine to 10 times more efficient by one measure. The higher the pole, the larger the surface illuminated below.

How many watts do we need to light up a stadium? To light up an entire soccer stadium, you would need approximately. 40,000 watts to 200,000 watts of floodlights. The actual wattage required depends on the stadium lighting requirements, size, ceiling height, pole height, and type of light. Please more details on football pitch lighting.

Stadium lights in public areas such as recreational softball fields or school softball fields will cost about $20,000 to $70,000. In addition, major League Baseball (MLB) fees will increase if your stadium is playing in a Major League Baseball tournament or the Olympics.

Stadiums are indeed the last market to switch to LED lighting, mainly because these applications require high levels of light -- up to 100,000 lumens per fixture. Even for street lighting, only 10,000 to 20,000 lumens are needed per fixture.

Related Products

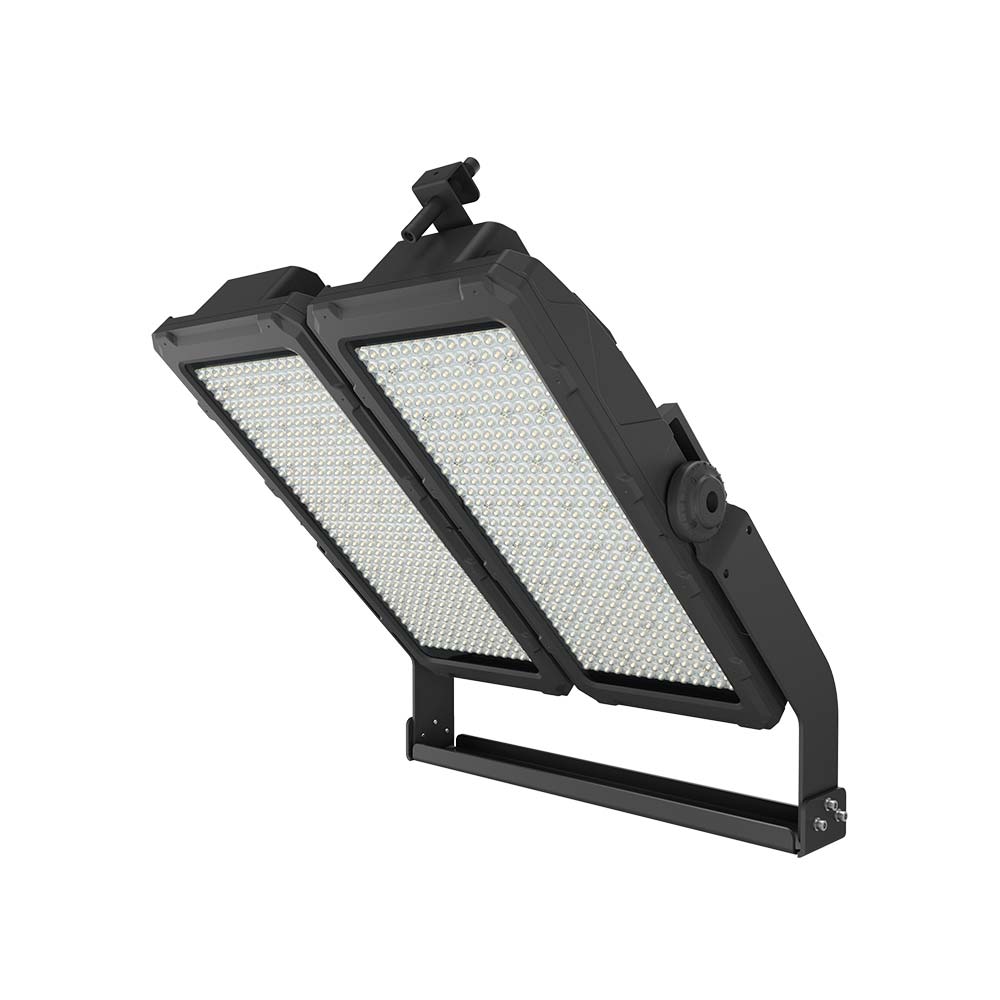

Series Glomax Pro High Power 2000-3600W Sport Court Lighting

Series Glomax Professional LED Sports Field Lights

led flood

Series ZOOM Tool-less Led Flood Light

Related Blogs

Certification Show

As a professional manufacturer of sport court lighting, our LED Mast Light have rich certification and test reports, such as CE, ROHS, IP66, IK08, LM80, TM-21, IEC62471, and so on.

COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
LED LM80 √
LUMINAIRES EN/IEC 60598-1 and 60598-2-1 √ √
IEC 62471 √ √
EN/ 60529 √ √
IEC 62262 √
EN/IEC 55015 √ √
EN/IEC 61000-3-2 √ √
EN 61547 √ √
EN/IEC 61000-3-3 √ √
IEC 62321 √ √
TM-21 √
LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
SPD EN/IEC 61643-11 √ √
FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
