Series Lume Heritage LED Retrofit Kits for Vintage Light Post

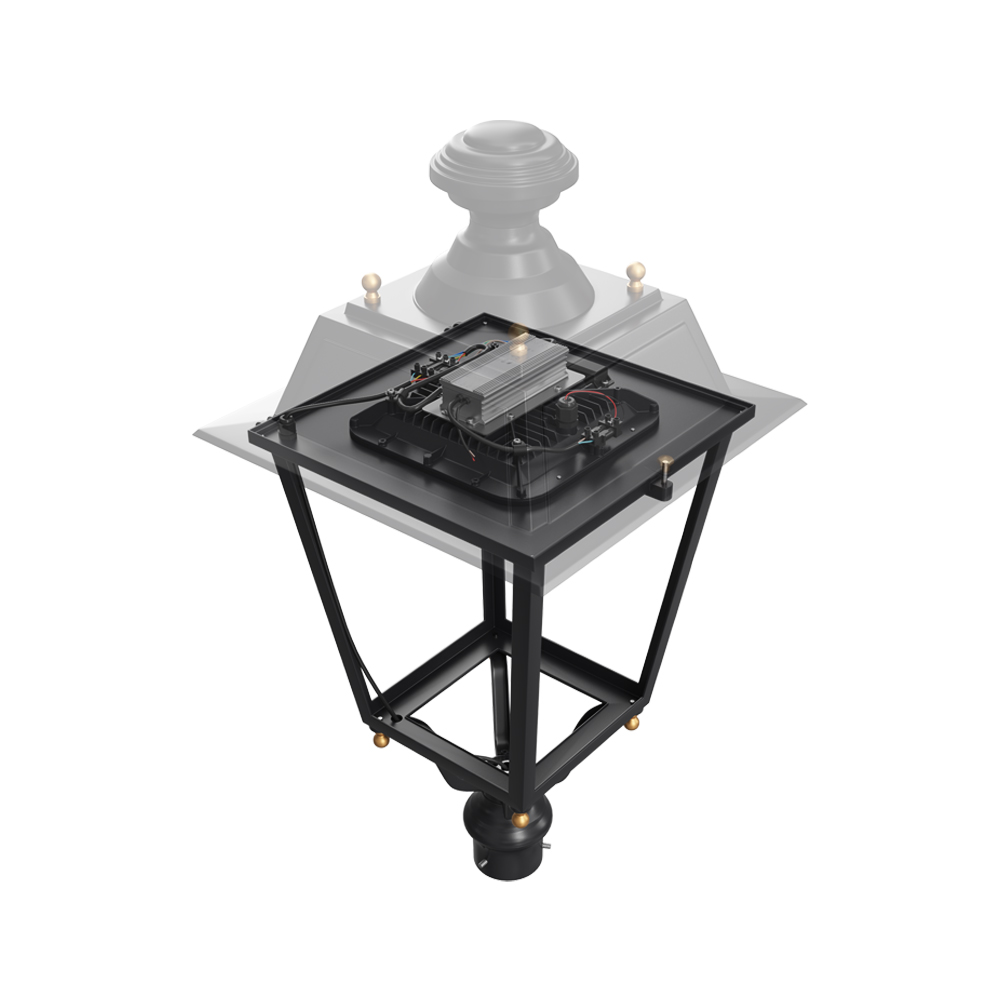

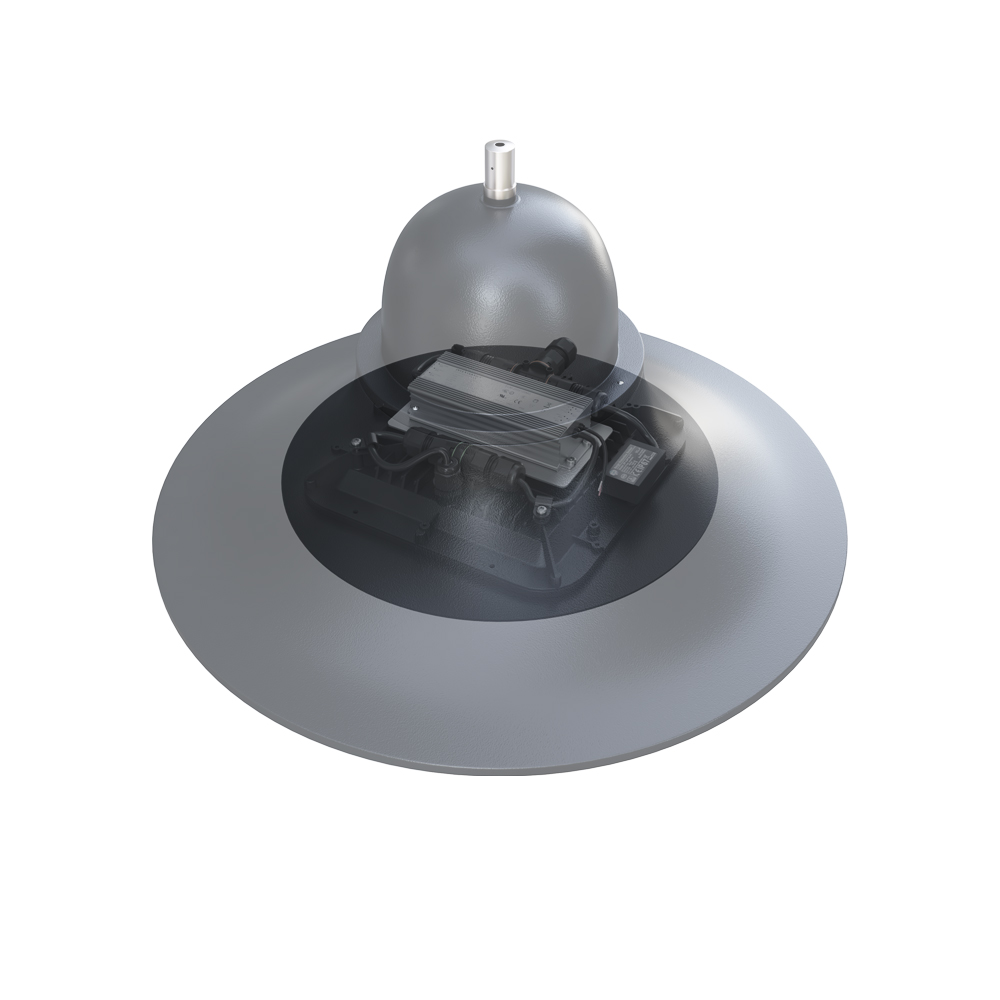

Series Lume heritage LED Retrofit Kits are designed to upgrade the lighting modules of vintage lamp posts to save money while preserving the original appearance of historic lanterns and decorative fixtures in memorial and heritage areas. This LED street light retrofit quickly replaces old light sources with high-performance LED modules, LED drivers, surge protectors, and adjustable frames. And its LED modules offer a variety of color temperature (CCT) and light distribution options to ensure soft, even illumination. High-quality LED drivers not only save energy, but also help customers reduce the high maintenance costs associated with using poor-quality bulbs. Power options up to 100W and customizable frames make it suitable for a wide range of applications, ZGSM ST25 series LED retrofit kits offer a perfect blend of classic aesthetics and the efficient performance of modern LEDs.

Product Features

  • Wide power range: 40W~100W
  • High luminaire efficiency up to 185lm/w
  • Class I, and Class II are optional ( What are Class I and Class II? )
  • IP66&IK08 with excellent water resistance
  • 10KV surge protection device
  • Suitable for -40°C to +50°C environments
  • Various CCTs and light distributions are available ( How to choose the right light distributions for your project )
  • Available with square or round type, support customization
  • With gland, adjustable bracket and cable holes for easy installation
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
LED Retrofit Kits
Post Top Light
Model No Series ST25 Heritage LED Retrofit Kits
Nominal Wattage 40W-100W
Efficiency Lumen 150-180lm/w
Nominal Voltage AC 100-240V /277V | 50 /60Hz
LED Lumileds /Other brands on request
Driver Inventronics /Other brands on request
Power Factor (PF) >0.95
THD <15
SPD 10KV (Default) / 20KV (available on request)
Optics Type II, Type III, Asymmetric for pedestrian crossings
CRI Ra>70 (Default) / Ra>80
CCT 1800K, 2200K, 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
Material High pressure die-cast aluminum, Tempered glass, UV-resistant polycarbonate
Housing Color Black (Default) /Other Colors on request
Working Environment -40°C ~ +50°C, 10%～90%RH
Lifespan L70 at 25 °C >100, 000 h
Mounting Type Side entry or Vertical pole mounted
Dimmable 1-10V Dimming (Default) /Timer Dimming /DALI Dimming
Protection Class Class I (Default) /Class II

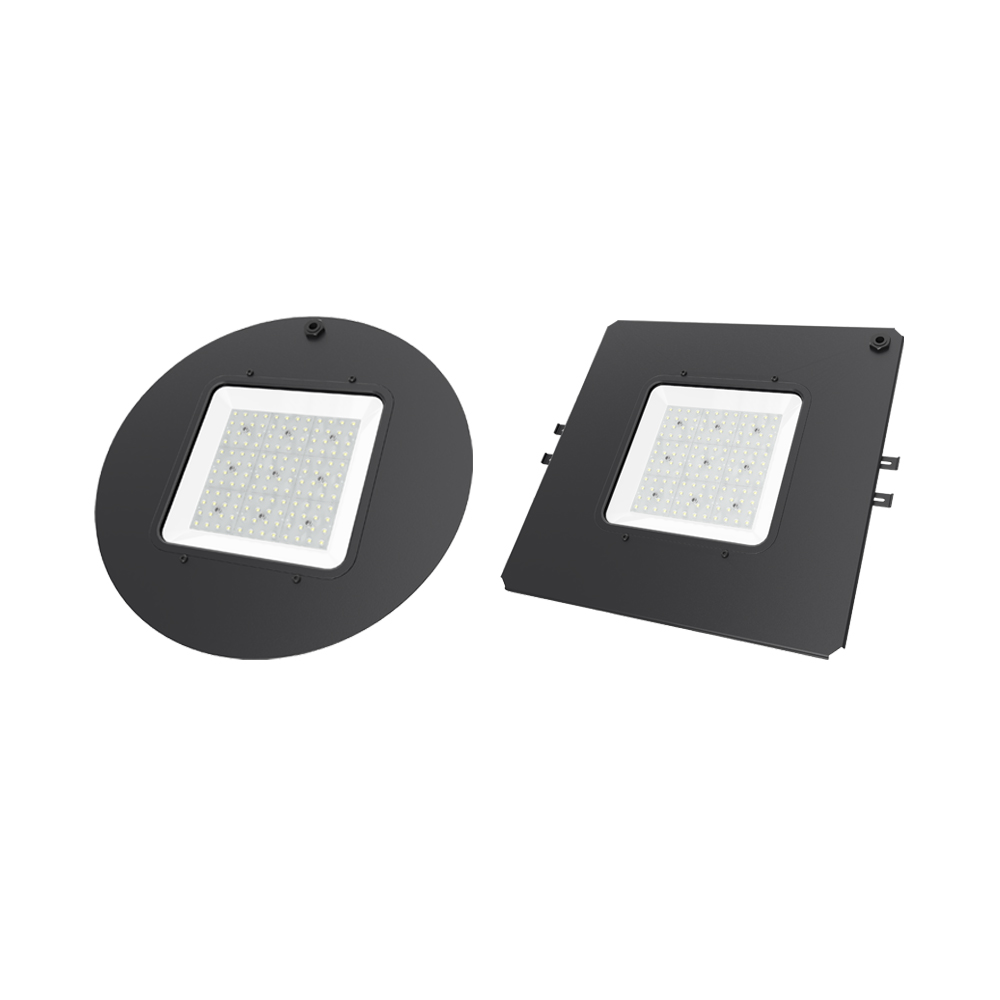

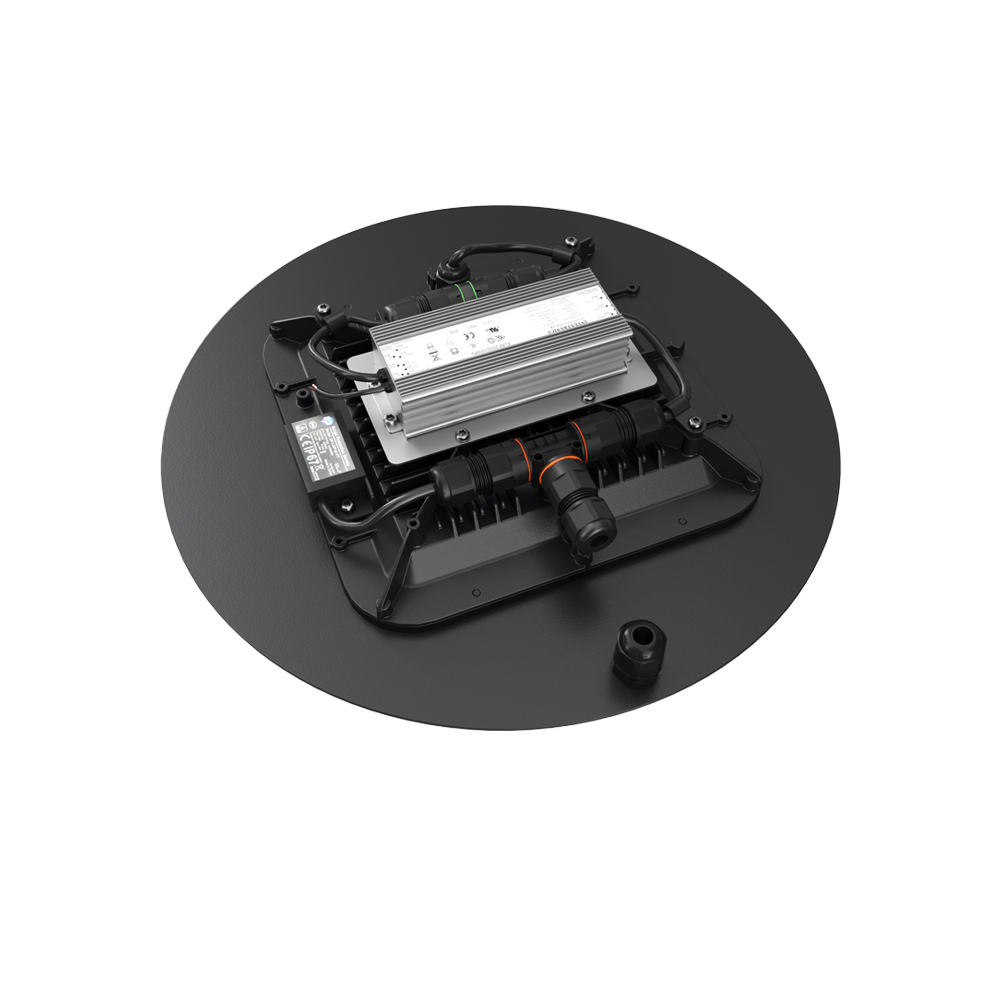

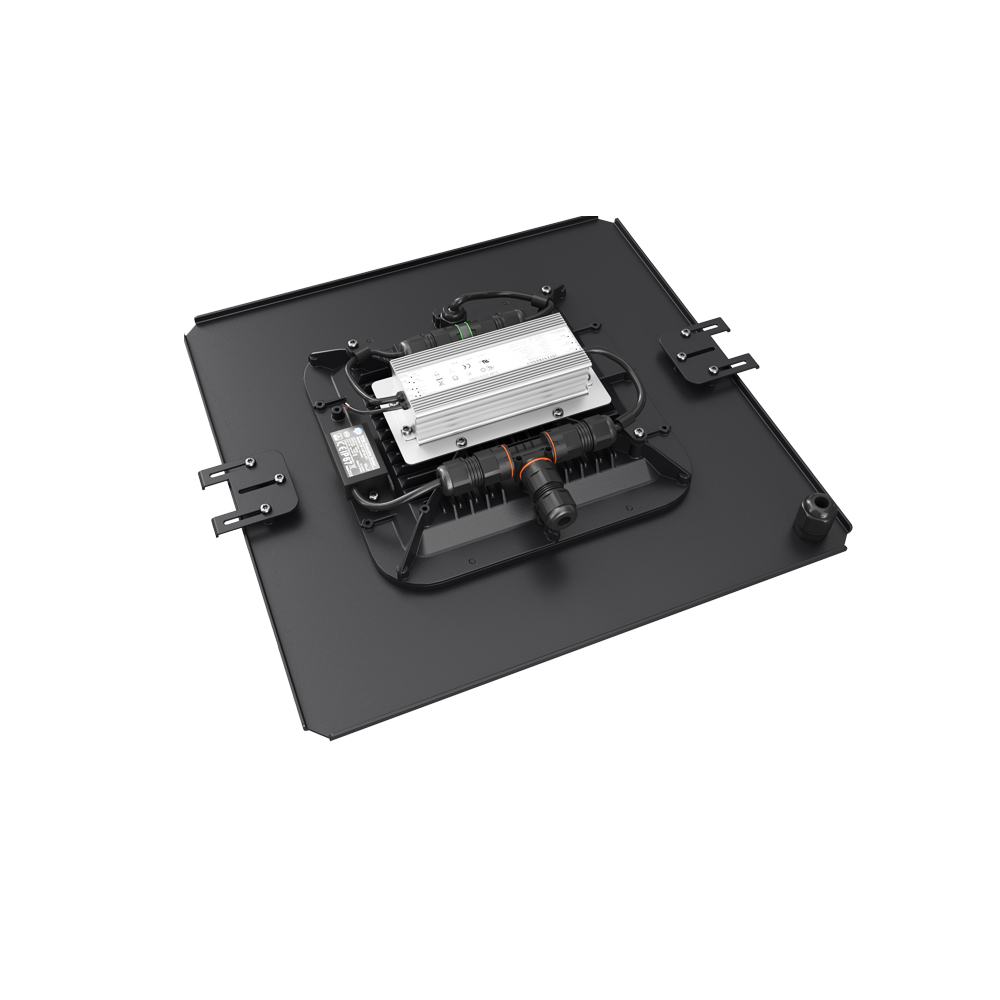

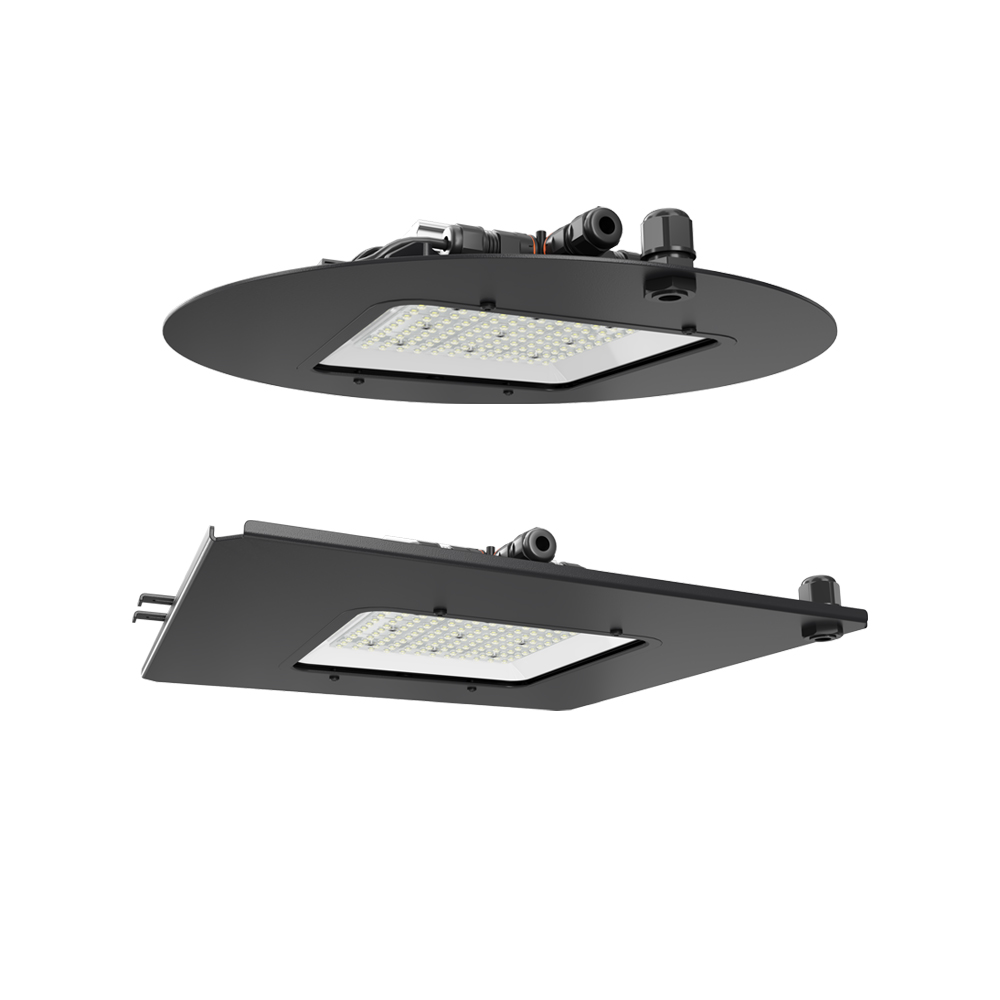

Mounting Plate Round (Φ 400mm) / Square type (400 x 400mm), Shape and Size are customizable
DS_ST25_Heritage LED Retrofit Kits Installation Manual_ST25_Heritage LED Retrofit Kits

Frequently Asked Questions

An LED retrofit kit is a lighting upgrade solution that allows you to convert existing fixtures to energy-efficient LED technology without replacing the entire fixture. These kits typically include an LED module, mounting hardware, and necessary wiring components, making installation simple while maintaining the original fixture's appearance.

LED Lights: Complete fixtures designed with LED technology, ideal for new installations.

Retrofit LED Lights: Utilize existing lighting fixtures through simple screw-in options or retrofit kits that seamlessly fit into existing equipment, making upgrades easy and cost-effective.

Retrofit LEDs are great for upgrading old lighting systems, while full LED fixtures offer enhanced performance and efficiency by replace the whole old lighting fixtures.

LED Retrofit Kits are designed to be compatible with most traditional lamp posts, allowing for an easy upgrade to LED technology. It will include LED driver, LED modules, SPD and other connectors to enable lighting. It typically includes adjustable mounting plates which makes easy for replacing the old light source. However, compatibility may vary depending on the specific fixture design, so checking dimensions and installation requirements is recommended.
