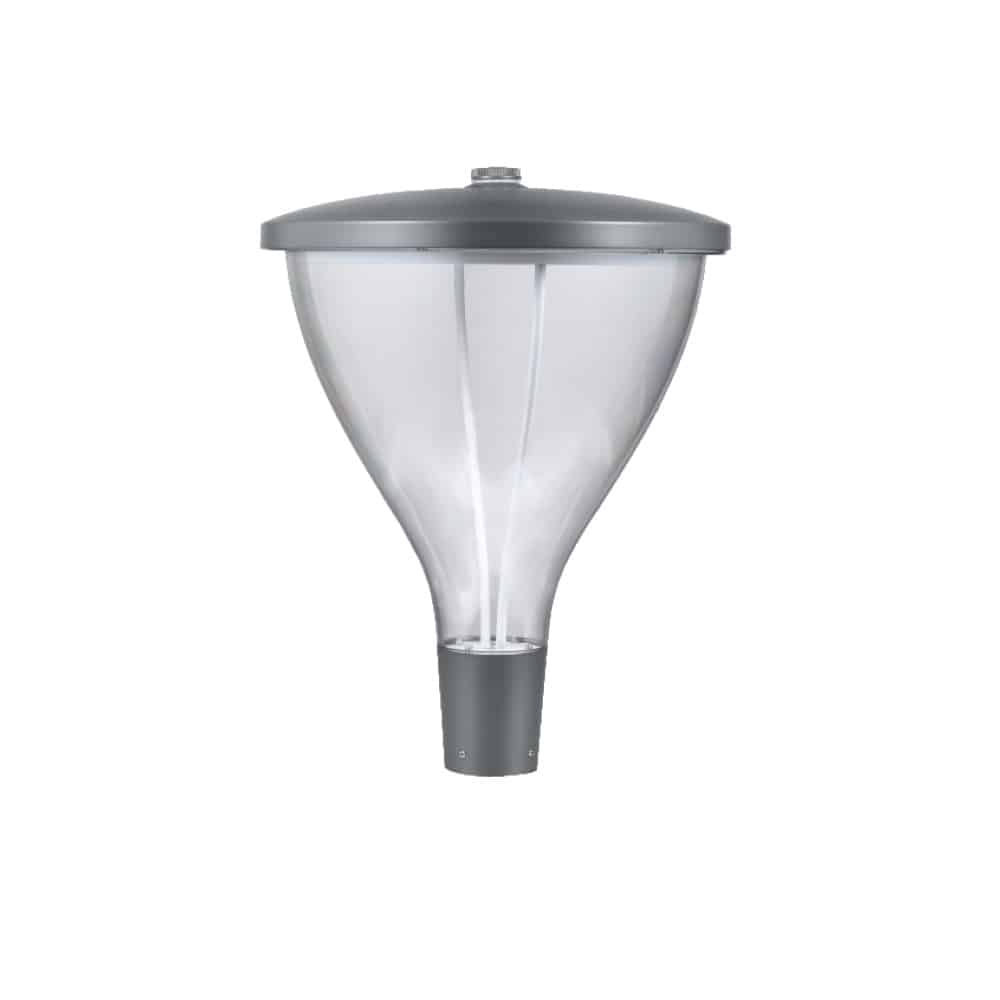

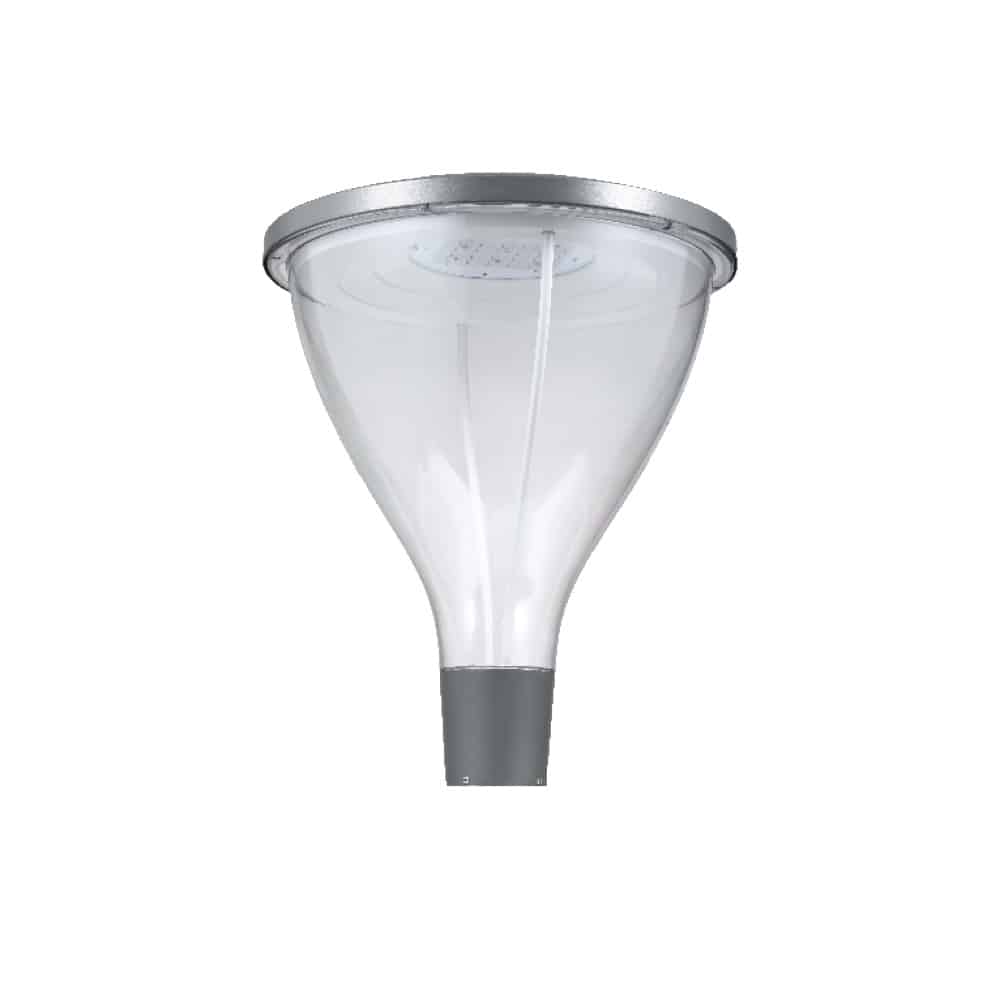

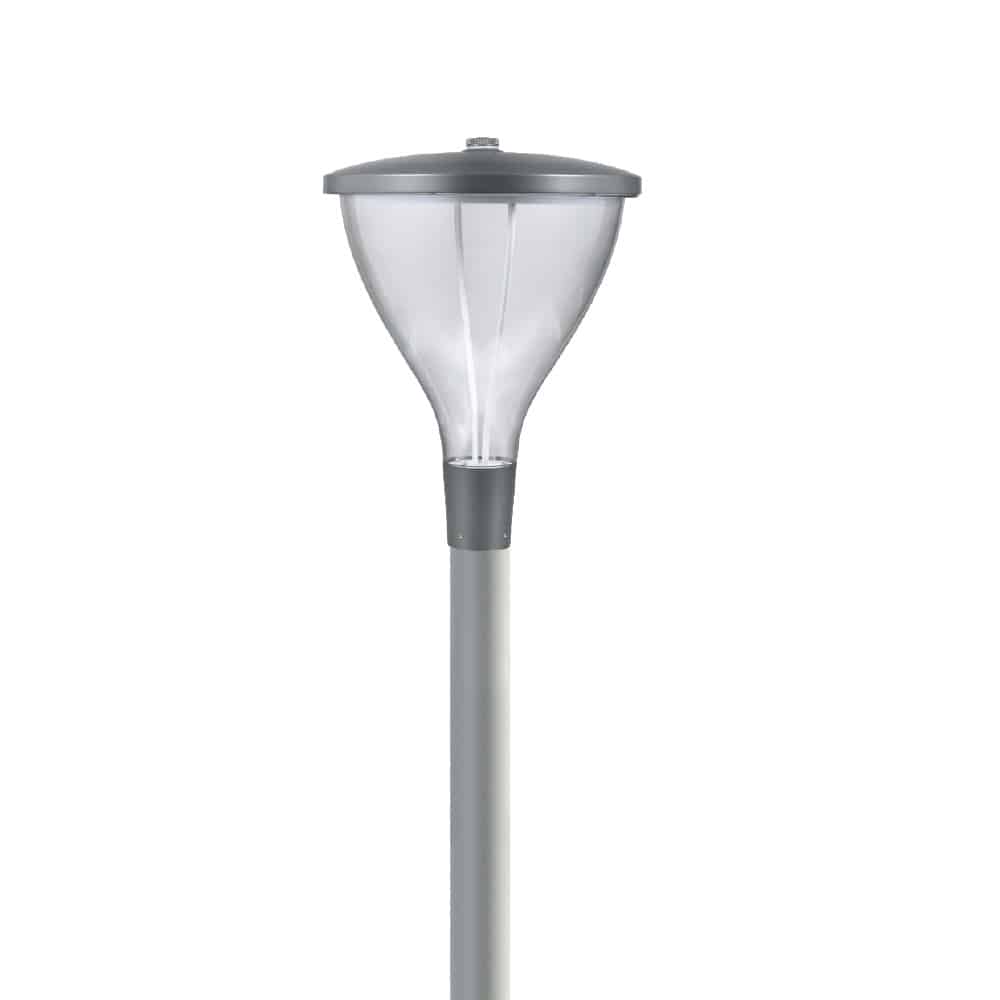

ZG-1088 Smart Post Top Light Fitting

ZG-1088 smart post top light fitting features a classic round open transparent PC cover that helps eliminate shadows caused by the lamp arm. The use of high-efficiency LED power supplies (Inventronics) and high-quality LEDs ensures the high-efficiency performance of the lamps (150LM/W). This series of post lights can also be equipped with Dali, photocell, NEMA and Zhaga functions to optimize the output of the luminaire and save energy. In addition, we also provide intelligent control system solutions such as LoRa and Zigbee for the series of post top lights.

Product Features

  • Wide power range: 40W~100W
  • High luminaire efficiency up to 150lm/w
  • Full die-casting aluminum housing(ADC12)
  • Class I, and Class II are optional
  • IP66&IK08
  • A variety of asymmetrical or symmetrical light distributions
  • Driver and SPD are easy to take off for replacement
  • 1-10V Dimming (Default) /Timer Dimming
  • Surge Protection: Differential mode 6 kV, Common mode 10 kV
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
Post Top Light Fitting
Post Top Light Fitting
Series No Series ZG-1088 Post Top Light Fitting
Power 40W, 60W, 80W, 100W
Efficacy 135-150lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK08
Beam Angle Type I, II, III, V or customized
Mounting Option Post Top
Warranty 5 Years
Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
DS_ZG-1088 Post Top Light Fitting Installation Manual_ZG-1088 Post Top Light Fitting

Frequently Asked Questions

Photoelectric conversion efficiency refers to the efficiency of a lamp in converting electrical energy into light energy. For example, the energy conversion efficiency of incandescent lamps that are now hardly used is about 15%, energy-saving lamps are about 30%, and very efficient LEDs currently reach about 20%. However, this is still only 40 - 50%, so 50 - 60% of the energy is lost as heat.

Luminous efficiency is a measure of the ability of a light source to produce visible light. It is the ratio of the luminous flux of an LEDs to its power, calculated in lumens per watt in the International System of Units (SI). For LEDs, it can reach 200lm/W now. As technology advances, this value continues to increase, and the ultimate goal is 300lm/W.

Luminaire efficacy is the light output of the entire fixture divided by the total power consumed by the fixture and LED driver. The unit is lumens/watt (lm/W). The efficiency of ZGSM's current lamps can reach 180lm/W. This is because we use high-efficiency LED drivers and LED chips with high luminous flux output.
